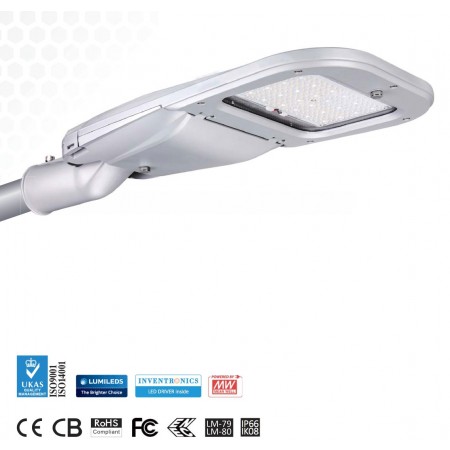

LED Street Light - SL2
Availability: In stock
SKU:SL2
Street light should fit with a wide range of applications, such as highway, motorways, roadways, avenues, walking pathways or car parks.
- High-end MeanWell HLG Series LED driver, optimal stability, performance and lifespan.
- Philips Lumileds 3030 2D. Greater than 150lm/W high efficacy, illumina on grade LED light source.
- Lamp will Auto turn on and off according to lux difference.
- Flexible Installation
- Optical lens options for maximum beam control
- Bespoke LED design service for lighting projects
- Lamp breather ensures air balance inside and outside of the lamp, which improves lamp service life.
- 5 Year Warranty

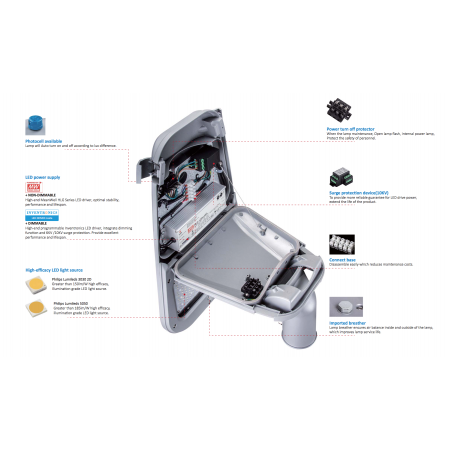

Detailed Features
When the lamp maintenance, Open lamp flash, Internal power lamp, Protect the safety of personnel.
To provide more reliable guarantee for LED drive power, extend the life of the product.
Disassemble easily which reduces maintenance costs.
Lamp breather ensures air balance inside and outside of the lamp, which improves lamp service life.
Lamp will Auto turn on and off according to lux difference.
LED power supply
+ NON-DIMMABLE
High-end MeanWell HLG Series LED driver, optimal stability, performance and lifespan.
+ DIMMABLE
High-end programmable Inventronics LED driver, integrate dimming function and 6KV /10KV surge protection. Provide excellent performance and lifespan.
High-efficacy LED light source
Philips Lumileds 3030 2D
Greater than 150lm/W high efficacy, illumination grade LED light source.
Philips Lumileds 5050
Greater than 185lm/W high efficacy, illumination grade LED light source.
Design

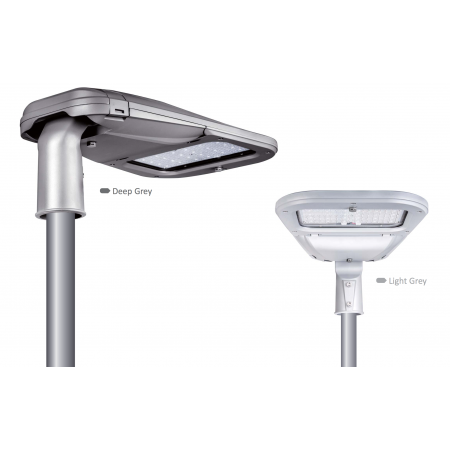

- External Design
Working Environment & Packing
Various Installation Methods With Different Adapters
Multiple Light Distribution Options
Street light should fit with a wide range of applications, such as highway, express way, roadway, avenue, walking path or parking lot lightings. Considering this, Best LED Lighting provide different light distribution lens for the SL2 Series street light to achieve best lighting effect in different applications. We follow the North American IESNA standard in providing the optional lens width ,TypeI, Type II and Type III. Type I is suitable for walking path with 1 lane, Type II is for 2 lanes and Type III is for even more wider road. We select the most suitable lens for its customers according to the detailed parameters project by project.
TYPE I
The Type I lens of street light has beam angle of 50*160 degrees. In the IESNA Standard, The Type I distribution is great for lighting walkways, paths and sidewalks. It is generally applicable to where the mounting height is approximately equal to the roadway width.
TYPE II
The Type II lens of SL2 series street light has beam angle of 65*155 degrees. In the IESNA Standard, the Type II distribution is used for wide walkways, on ramps and entrance roadways, as well as other long, narrow lighting. It is generally applicable to where the width of the roadway does not exceed 1.75 times the designed mounting height.
TYPE III
The Type III lens of SL2 series street light has beam angle of 80*160 degrees. In the IESNA Standard, the Type III distribution is meant for roadway lighting, general parking areas and other areas where a larger area of lighting is required. This distribution is intended for luminaires mounted at or near the side of medium width roadways or areas, where the width of the roadway or area does not exceed 2.75 times the mounting height.
Intelligence Street Lighting System
Best LED Lighting provide a total solution for intelligence street lighting system.
Best LED Lighting street light intelligence system is made up by sotiware, concentrator, terminal controller. The concentrator controller is installed in the distribution cabinet, the terminal controller is installed in the lighting terminal. It proceeds with communication via GPRS/CDMA/WCDMA wireless network or cable network & monitor center and proceeds with communication via ZIGBEE/PLC. Concentrator controller can control each terminal controller via receiving, executing, forwarding PC management sotiware,
which can control each lamp's switching on /off or dimming ,then save electric energy. It can also monitor the lamps' electric energy to achieve failure lamps function. Concentrator controller can built-in DO to achieve street light loop control, it can connect with other equipment to collect local illumination, temperature and other information, feedback to PC management sotiware and achieve to monitor the current information.
Optical Control
Optical control function is supported by optional
If the fixture with PHOTO CONTROL function, the Photo Receptacle will be installed on the cover of fixture. See A. Fit the pins of Photo Sensor to Photo Receptacle, firmly insert and rotate Photo Sensor to proper position.
<Verifying>
Make sure all the connections done and photo control is well installed on the fixture, switch on the power supply and cover the window of photo sensor, wait 5 seconds, the fixture will be turned on.
Dimming Optional
Inventronics driver will be used if dimming request.
Multiple dimming functions are integrated (0-5V DC or 0-10V DC or PWM Signal or Timer).
- 0-5V Dimming [ All the models over 55W are available ]
- 0(1)-10V Dimming [ All the models are available except 25W]
- PWM Dimming [ All the models over 55W are available ]
- Timer Dimming [ All the models over 55W are available ]
Flexible Fitter
