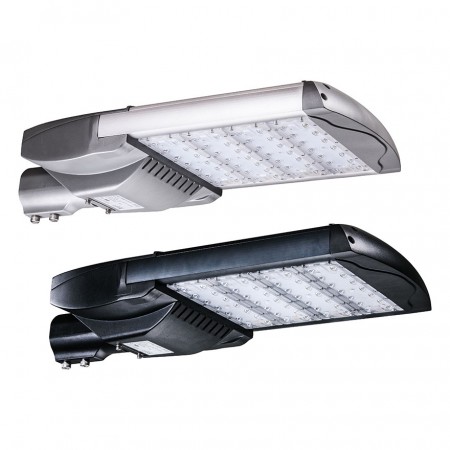

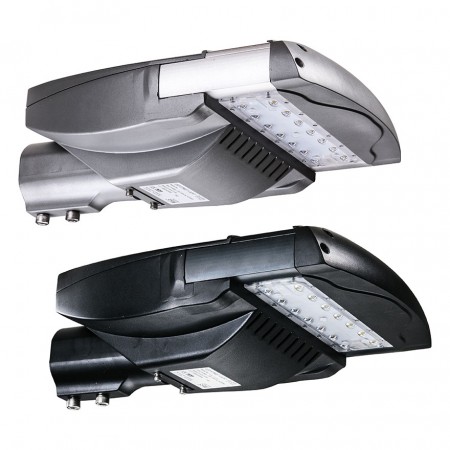

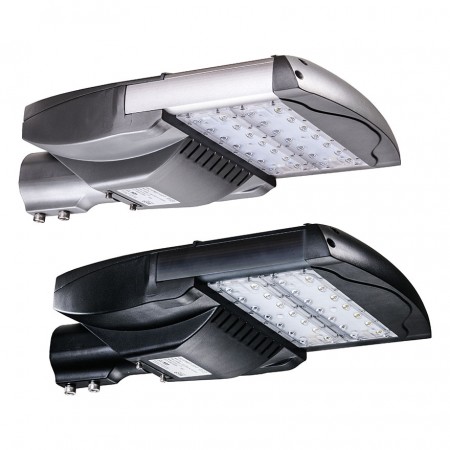

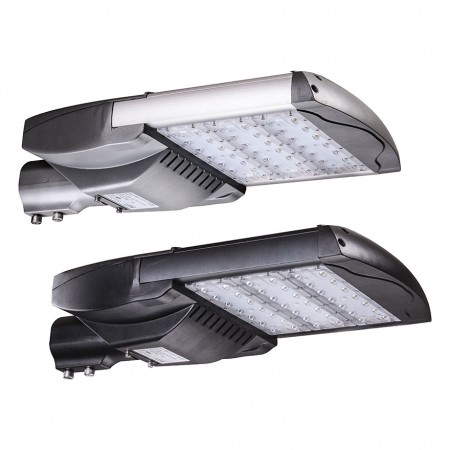

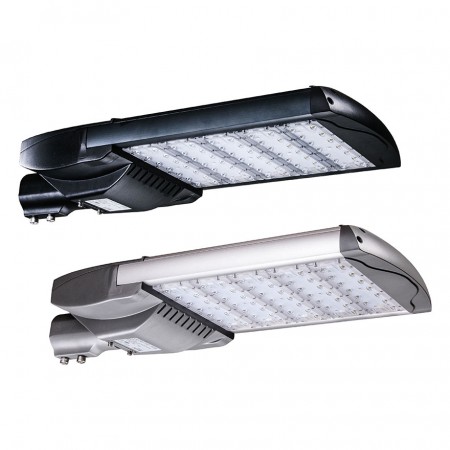

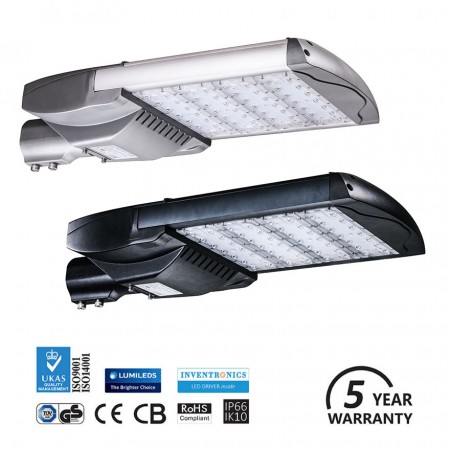

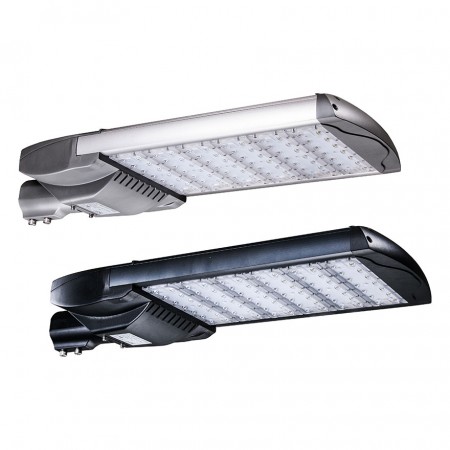

LED Street Light - SL1
Availability: In stock
SKU:SL1
LED SL1 street light can help increase energy efficiency by 80% and deliver a brighter illumination of streets, roads, motorways, highways, car parks and pathways.
- Philips LumiLEDs - Greater than 135lm/W high efficiancy
- Inventronics High-end programmable EBD Series LED driver
- Integrated dimming function
- Flexible Installation
- Xtreme Luminaire Design
- Optical lens options for maximum beam control
- Bespoke LED design service for lighting projects
- 6 size options from 40w to 240w
- 5 Year Warranty
- Average electricity usage payback = 3 years
Overview
An elegant design with Best Electric's 3rd generation LED modules combined with highly efficient LUMILEDS® LUXEON TX luminous sources and highly reliable INVENTRONICS® EBD drivers.
The Best Electric SL1 LED street lights have a high luminous efficiency and better service life.
Provide 5 years warranty on luminaire.
LED Luminous Source
LED Driver
LED Module
Overall stainless steel screws adopted.
Black & Silver Color Modules.
Cylindrical edge design, avoid cut risk.
Xtreme Luminaire Design
Flexible Installation
Innovative pole fitter design not only achieve the horizontal and vertical installation features, also has 0-15° adjustable function for each installation direction.
Optics
Applications: Single Driveway | Walkway /Cycleway | Branch Road
Applications: Two Driveway | Driveway Entrance | Urban Road
Applications: Three Driveway | Highway | Parking Lot /Area
Applications: Parking Lot | Square | Area
Detailed Features
Professional lens design, suitable for various applications.
Luminaire body is fixed by two M8x16 fortified stainless steel screws.
Rational clamshell design for wiring compartment, sturdy and durable.
Use stainless steel screws for whole luminaire, no corrosion worries.
Use German WAGO® connectors for output wiring, safe, convenient & fast.
Innovative pluggable connector, clean & efficient.
UL standard connection.
Full aluminum made, sufficient heat dissipation area.
Dimming
Multiple dimming functions are integrated (0-5V DC or 0-10V DC or PWM Signal or Timer).
0-5V Dimming
The recommended implementation of the dimming control is provided below.
Notes:
- The dimmer can also be replaced by an active 0-5V voltage source signal or passive components like resistors and zener.
- Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
- If 0-5V dimming is not used, Dim + should be open.
- When 0-5V negative logic dimming mode and Dim+ is open, the driver will output maximum current.
0-10V Dimming
The recommended implementation of the dimming control is provided below.
Notes:
- The dimmer can also be replaced by an active 0-10V voltage source signal or passive components like resistors and zener.
- Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
- If 0-10V dimming is not used, Dim + should be open.
- When 0-10V negative logic dimming mode and Dim+ is open, the driver will output maximum current.
PWM Dimming
The recommended implementation of the dimming control is provided below.
Notes:
- Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
- If PWM dimming is not used, Dim + should be open.
- When PWM negative logic dimming mode and Dim+ is open, the driver will output maximum current.
Time Dimming
Notes:
- Time Dimming is required to program by computer (Microsoft Windows).
- Set the timing curve by pulling the sliders.
Optical Control
Optical control function is supported by optional
If the fixture with OPTICAL CONTROL function, the Optical Receptacle will be installed on the cover of fixture. See A. Fit the pins of Optical Sensor to Optical Receptacle, firmly insert and rotate Optical Sensor to proper position.
Time Control Dimming
Time control dimming function is supported by optional - Contact Best Electric for Details
After-sale Service
Best Electric Ltd warrants this hardware product against defects in materials and workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase. Best Electric Ltd provides free repair or replacement within warranty period. Best Electric Ltd shall charge against defeats by abnormal storage, usage, connection or change the structure or any components of the product.
*Damage by thunder over 10KV(L,N to FG) /6KV(L to N) will not be covered by warranty based on EC61000-4-5.
