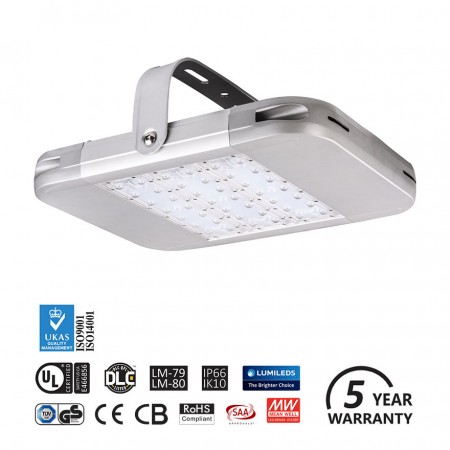

LED High Bay Light - HBL1

Availability: In stock

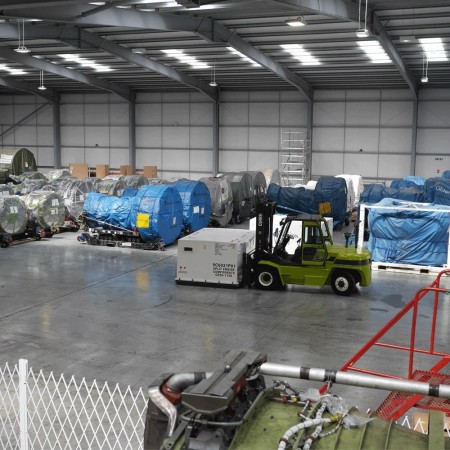

LED HBL1 high bay light for warehouses & factories can increase energy efficiency by up to 80%.  Ideal for industrial & commercial applications.

  • Philips LumiLEDs - Greater than 135lm/W high efficiency
  • World famous Meanwell HLG Series LED driver
  • Optional integrated dimming function
  • Optional integrated motion sensor
  • Optical lens options for maximum beam control
  • Flexible Installation
  • Xtreme Luminaire Design
  • Bespoke LED design service for lighting projects

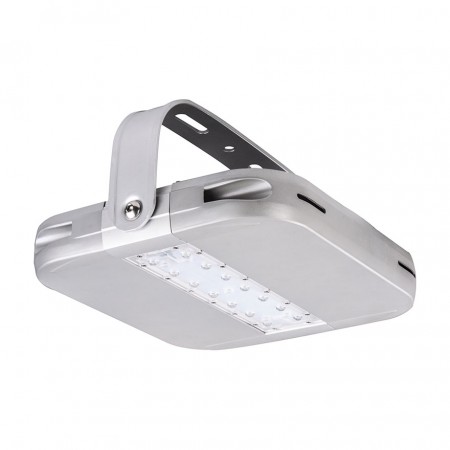

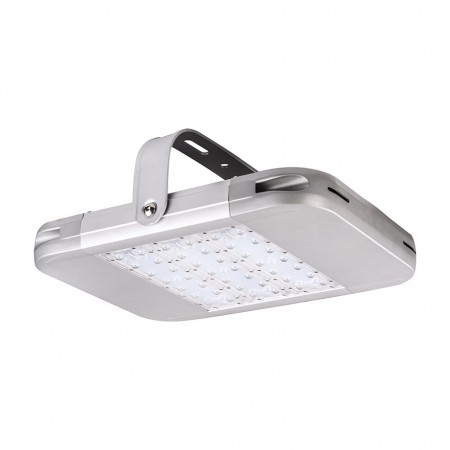

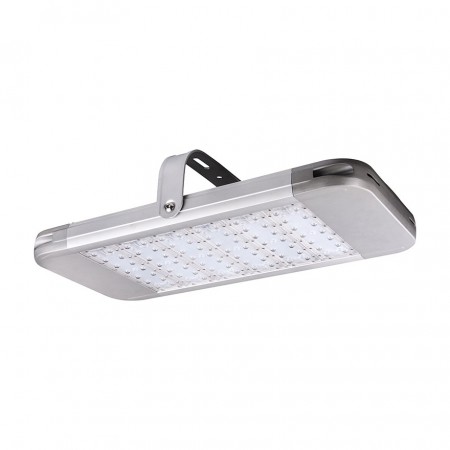

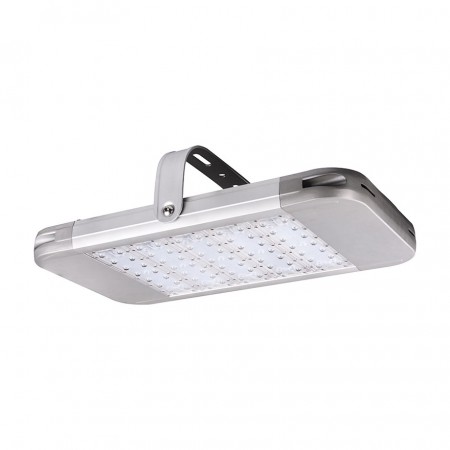

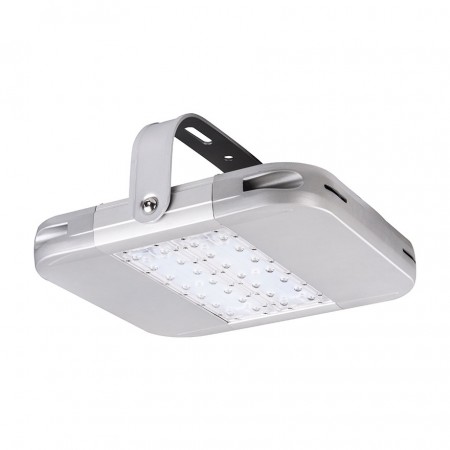

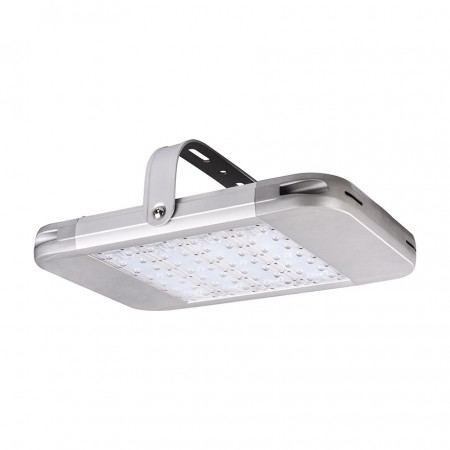

  • 6 size options from 40w to 240w
  • 5 Year Warranty
  • Average electricity usage payback = 3 years

Request a FREE Quote

* Required Fields

Powered by WebForms


Revolutionary built-in driver design with extremely simple and clean appearance.

The Best Electric HBL1 LED high bay lights are using highly luminous-efficient LUMILEDS® LUXEON TX luminous source and highly reliable HLG Series Mean Well® driver.

Provide 5 years warranty on luminaire.

LED Luminous Source


LED Driver

LED Driver

LED Module

LED Module
Overall stainless steel screws adopted

Overall stainless steel screws adopted.

Black & Silver Color Modules

Black & Silver Color Modules.

Cylindrical edge design

Cylindrical edge design, avoid cut risk.

Xtreme Luminaire Design

H Series back


Lens code 60°

Applications: Shelf Aisle | High Hall | High Workshop

Lens code 90°

Applications: Warehouse | Workshop

Lens code 110°

Applications: Warehouse | Workshop | Gas Station

Detailed Features

Professional lens design

Professional lens design with 60°, 90° and 110° optional

Use M16 waterproof connector

Use M16 waterproof connector, avoid hard power damage.

Full aluminum made heat dissipation area

full aluminum made, sufficient heat dissipation area also no corrosion worries.

Taylor-made packaging

A special taylor-made packaging designed to guarantee the highest protection of the lamp.

Waterproof connector for internal wiring

Use waterproof connector for internal wiring, safe, convenient & fast.

Innovative pluggable connector

Innovative pluggable connector, clean & efficient.

UL standard connection

UL standard connection.

Exquisite and enhanced full aluminium bracket

Exquisite and enhanced full aluminium bracket.


Dimming functions are supported by optional.

  1. Three in One (1-10V DC or PWM Signal or Resistance).
  2. Output constant current level can be adjusted through out put cable by connecting a resistance or 1 ~ 10Vdc or 10V PWM signal between DIM+ and DIM-.
  3. Please DO NOT connect "DIM-" to "-V ".
» Reference resistance value for output current adjustment (Typical)
 Resistance value 10KΩ 20KΩ 30KΩ 40KΩ 50KΩ 60KΩ 70KΩ 80KΩ 90KΩ 100KΩ OPEN
 Percentage of rated current 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% 95% ~ 108%
» 1-10V dimming function for output current adjustment (Typical)
Resistance value 1V 2V 3V 4V 5V 6V 7V 8V 9V 10V OPEN
 Percentage of rated current 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% 95% ~ 108%
» 10V PWM signal for output current adjustment (Typical): Frequency range: 100Hz ~ 3KHz
Resistance value 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% OPEN
 Percentage of rated current 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% 95% ~ 108%

Time Control Dimming

Time control dimming function is supported by optional - Contact ZGSM for Details

Supported Installation Methods

Supported Installation Methods

After-sale Service

Best Electric Ltd warrants this hardware product against defects in materials and workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase. Best Electric Ltd provides free repair or replacement within warranty period. Best Electric Ltd shall charge against defeats by abnormal storage, usage, connection or change the structure or any components of the product.

*Damage by thunder over 4KV(L,N to FG) /2KV(L to N) will not be covered by warranty based on EC61000-4-5.
